Microchips that keep their cool up to 300 degrees C

by | May 7, 2014

Researchers have fabricated compact SOI CMOS microchips that perform at temperatures the current generation of electronics can't handle.

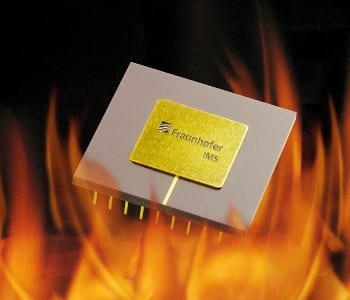

Keeping their cool at 300 °C: the especially compact microchips of Fraunhofer IMS. Image copyright Fraunhofer IMS.

Keeping their cool at 300 °C: the especially compact microchips of Fraunhofer IMS. Image copyright Fraunhofer IMS.

Temperatures over 200 °C often occur in geothermal and oil production – conventional microelectronics hit their limits there. Researchers have now fabricated compact microchips that can keep their cool even at 300 °C.

An enormous treasure slumbers in the depths of our planet. Temperatures of up to 7000 °C are thought to be present in the Earth’s core, while at a depth of four to six kilometers (2.5 to 3.5 miles) it is still 150 °C to over 200 °C. These gigantic reserves of heat can be used as a renewable source of energy for geothermal power. However, the drill bits and bore hole probes employed to probe and tap them are high-tech machines. They are fitted with a range of sensors and control mechanisms for their expedition into the Earth’s interior. They are able in this way to be very precisely controlled or autonomously analyze the environmental parameters at depth, and thereby locate suitable – in other words, warm – regions for geothermal production. And therein lies the problem: microchips hit their thermal limits when exposed to temperatures over 200 °C.

Withstanding temperatures of several hundred degrees Celsius

Scientists of the Fraunhofer Institute for Microelectronic Circuits and Systems IMS have now developed a new type of high-temperature process that they believe may be the solution to this electronic quandary. “It becomes possible with this process to fabricate extremely compact microchips that operate flawlessly even at temperatures of up to 300 °C,” according to Holger Kappert, head of High-Temperature Electronics at Fraunhofer IMS. It is true that some conventional semiconductor chips (CMOS) can tolerate temperatures of up to 250 °C, but their performance and reliability fall off rapidly. Frequently, companies must test a large quantity of standard chips using trial-and-error before they obtain an acceptable selection – a laborious undertaking.

An additional avenue exists – continuously cooling the heat-sensitive microelectronics. This, however, can hardly be accomplished without extensive additional effort being necessary. There are also specialized high-temperature chips already on the market – but with about one micrometer minimal structure size, they are very large. “The solutions available are always associated with certain trade-offs: either they have comparatively large components, or they function with limited performance,” Kappert summarizes.

The microchips from IMS are different, though. At a characteristic dimension of 0.35 µm, they are considerably smaller than the high-temperature chips available today. The advantage of these kinds of complex microstructures can be summarized as “more functionality at less size“. That is what is necessary to make the chips more capable and more intelligent as well. To fabricate the heat-tolerant mini-chips, the researchers in Duisburg, Germany, use a specialized high-temperature SOI CMOS process. “SOI stands for ‘silicon-on-insulator’ – that means we introduce a layer that insulates the transistors from one another,” explains Kappert. This insulation prevents leakage currents that occur from influencing the operation of the chip. Leakage currents are electrical currents flowing over other than intended paths. They are caused or increased by elevated temperatures in particular. Moreover, the researchers use tungsten metallization for their chips, which is less temperature sensitive than the aluminum usually used. This increases the operating life of the high-temperature chips.

Environmentally friendlier flight

Production of geothermal energy, natural gas, or oil is not the sole area of potential application. The microchips could also prove valuable to aviation, for instance by enabling sensors to be located as close as possible to turbine engines in order to be able to observe the state of their operation. This could permit the turbines to be operated more reliably and efficiently, saving jet fuel and thereby making aviation environmentally friendlier. The first field tests of the new chips have been positive. The researchers want to offer the fabrication process as a service later this year.
